ASME B16.9 Elbow Dimensions Of 45 And 90 Degree

  • Home
  • ASME B16.ASME B16.9 Elbow
ASME B16.9 Elbow

ASME B16.9 Elbow

Buttweld 45 Deg Elbow

Buttweld 45 Deg Elbow

Elbow 90 Sch 40

Elbow 90 Sch 40



Price List Of Stainless Steel 45 Degree Elbow


SR NO Description PRICE PAR PICE IN (USD$)
1 45° ELBOW: 6 NPS, Carbon Steel WPB, Seamless, SCH40 * SCH80, Long Radius Elbow, ASME B16.9 / ASME B16.9 $16.26
2 90° ELBOW: 2 NPS, ASME B16.9/ ASME B16.9, WPB, Elbow, Seamless, SCH80 * SCH120, Long Radius $18.29
3 180° ELBOW: 6 NPS, WPB, Seamless, SCH40, Short Radius, ASME B16.9 / ASME B16.9 $56
4 Long Radius, 70° Elbow, Buttweld, SCH80 * SCH120, ASME B16.9 / ASME B16.9, CS, Gr.WPB $8.37
5 Short Radius, 10° Elbow, Buttweld, SCH40 * SCH80, Carbon Steel, ASME B16.9 / ASME B16.9, ASTM A 234 Gr.WPB $4.98

Carbon Steel Elbow 90 Degree Specification


Chek Specifications Of: ASME B16.9 Elbow
Standard Size Of: SLMS BW Pipe Fittings To 1/2″ – 10″
Weld BW Pipe Fitting To 1/2″ – 48″
Types Of Elbow 90 Sch 40 ERW / Welded Fitting / BW / SMLS / Fabricated Fittings
Check Standard Of Pipe Elbow: ASME B16.9, ASME B16.47, ASME B16.38, MSS-SP-43, ANSI B16.28, BS, GB, ISO, DIN, ASME B16.25, MSS SP-75 DIN2605, JISB2311, JISB2312, JISB2313, BS4504, BS4504, BS1560, BS10
Thickness Chart: SCH10, 20, 30, STD 40, 60, XS, 80, 100, 120, 140
Industries For Use ASME B16.9 Elbow 45 Degree : Petrochemical Industry
Nuclear Power Plant
Oil And Gas Industry
Bending Radius : Radius=1D, 2D, 3D, 5D, 6D, 8D, 10D
Manufacturers Process : Push, Press, forge, Cast, Marking, Packing In Boxes For Sale.
Mills And Origin : Indian, USA, Japanese, Russian

ASME B16.9 Elbow Weight Chart


Nominal Pipe Size LBS Kilogram
1/2 0.09 0.04
3/4 0.09 0.04
1 0.25 0.11
1.1/4 0.38 0.17
1.1/2 0.4 0.18
2 0.81 0.37
2.1/2 1.75 0.79
3 2.63 1.19
3.1/2 3.5 1.59
4 4.5 2.04
5 7.5 3.4
6 12 5.44
8 23 10.43
10 43 19.5
12 62 28.12
14 80 36.29
16 100 45.36
18 126 57.15
20 160 72.57
22 197 89.36
24 238 107.95
26 275 124.74
30 367 166.47
36 531 240.86
NPS LBS KG

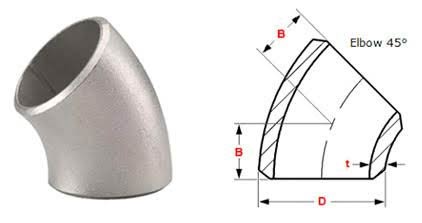

Buttweld 45 Deg Elbow Dimensions In MM


Buttweld 45 Deg Elbow Dimensions In MM

NPS O.D.
D		 ASME B16.9 45 deg
LR
Center-to-End
A		 ASME B16.9 45 deg
LR
Center-to-End
B		 ASME B16.9 45 deg
3D
Center-to-End
A		 ASME B16.9 45 deg
3D
Center-to-End
B
1/2 21.3 38 16 – –
3/4 26.7 38 19 57 24
1 33.4 38 22 76 31
1¼ 42.2 48 25 95 39
1½ 48.3 57 29 114 47
2 60.3 76 35 152 63
2½ 73 95 44 190 79
3 88.9 114 51 229 95
3½ 101.6 133 57 267 111
4 114.3 152 64 305 127
5 141.3 190 79 381 157
6 168.3 229 95 457 189
8 219.1 305 127 610 252
10 273 381 159 762 316
12 323.8 457 190 914 378
14 355.6 533 222 1067 441
16 406.4 610 254 1219 505
18 457 686 286 1372 568
20 508 762 318 1524 632
22 559 838 343 1676 694
24 610 914 381 1829 757
26 660 991 406 1981 821
28 711 1067 438 2134 883
30 762 1143 470 2286 964
32 813 1219 502 2438 1010
34 864 1295 533 2591 1073
36 914 1372 565 2743 1135
38 965 1448 600 2896 1200
40 1016 1524 632 3048 1264
42 1067 1600 660 3200 1326
44 1118 1676 695 3353 1389
46 1168 1753 727 3505 1453
48 1219 1829 759 3658 1516

Types Of ASME B16.9 Long Radius Elbow


2-1/2 in. Stainless Steel 45 Degree Elbow

2-1/2 in. Stainless Steel 45 Degree Elbow

ASME B16.9 Elbow 45 Degree Schedule 10

ASME B16.9 Elbow 45 Degree Schedule 10

1 in. 150# Carbon Steel Elbow 90 Degree

1 in. 150# Carbon Steel Elbow 90 Degree

18 in. Schedule 10 90 Deg Street Elbow

18 in. Schedule 10 90 Deg Street Elbow

ASME B16.9 Buttweld Elbow 180 Deg

ASME B16.9 Buttweld Elbow 180 Deg

1-1/2 in. BW Sch10 316L 180 Degree Compression Elbow

1-1/2 in. BW Sch10 316L 180 Degree Compression Elbow

ASME B16.9 LR Bw Elbow Schedule 80

ASME B16.9 LR Bw Elbow Schedule 80

1 in. Weld Polished 304L Long Radius Elbow Pipe Fittings

1 in. Weld Polished 304L Long Radius Elbow Pipe Fittings

1-1/2 in. Butt Weld 90 Degree Short Radius Elbow

1-1/2 in. Butt Weld 90 Degree Short Radius Elbow

3/4 sch 40 Short Radius Elbow

3/4 sch 40 Short Radius Elbow

Schedule 80 Cast Iron 90 Degree Elbow

Schedule 80 Cast Iron 90 Degree Elbow

1/2 in. BW Sch40 ASME B16.9 Elbow

1/2 in. BW Sch40 ASME B16.9 Elbow

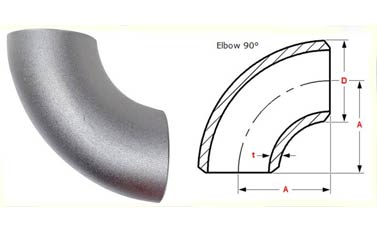

Dimensions Of 90 Degree Elbow Fitting In Inch


Dimensions Of 90 Degree Elbow Fitting In Inch

ASME B16.9 Elbow Dimensions
inch ND mm Center to center Radius Center to end Back to face
D O A B K
1/2 15 21,34 76,20 38,10 15,87 47,62
3/4 20 26,67 57,15 28,57 11,11 42,86
1 25 33,40 76,20 38,10 22,22 55,56
1 1/4 32 42,16 95,25 47,60 25,40 69,85
1 1/2 40 48,26 114,30 57,15 28,57 82,55
2 50 60,32 152,40 76,20 34,92 106,40
2 1/2 65 73,02 190,50 95,25 44,45 131,80
3 80 88,90 228,60 114,30 50,80 158,75
3 1/2 90 101,60 266,70 133,35 57,15 184,15
4 100 114,30 304,80 152,40 63,50 209,55
5 125 141,30 381,00 190,50 79,38 261,90
6 150 168,27 457,20 228,60 95,25 312,70
8 200 219,07 609,60 304,80 127,00 414,30
10 250 273,05 762,00 381,00 158,75 517,50
12 300 323,85 914,40 457,20 190,50 619,10
14 350 355,60 1066,80 533,40 222,25 711,20
16 400 406,40 1219,20 609,60 254,00 812,80
18 450 457,20 1371,60 685,80 285,74 914,40
20 500 508,00 1524,00 762,00 317,50 1016,00
22 550 558,80 1676,40 838,20 342,90 1117,60
24 600 609,60 1828,80 914,40 381,00 1219,20
28 700 711,20 2133,60 1066,80 441,90 1422,40
Dimensions in mm.

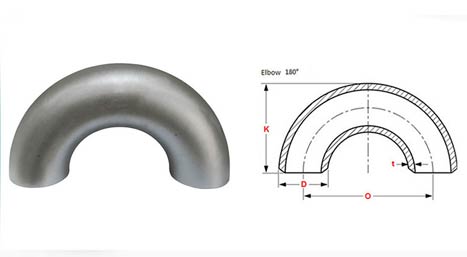

180 Degree Steel Pipe Elbow Dimensions


180 Degree Steel Pipe Elbow Dimensions

NPS O.D.
D		 180 Degree Elbow Long Radius 180 Degree Short Radius
Center to
Center
O		 Back to
Face
K		 Center to
Center
O		 Back to
Face
K
1/2 21.3 76 48 … …
3/4 26.7 76 51 … …
1 33.4 76 56 51 41
1.1/4 42.2 95 70 64 52
1.1/2 48.3 114 83 76 62
2 60.3 152 106 102 81
2.1/2 73 190 132 127 100
3 88.9 229 159 152 121
3.1/2 101.6 267 184 178 140
4 114.3 305 210 203 159
5 141.3 381 262 254 197
6 168.3 457 313 305 237
8 219.1 610 414 406 313
10 273 762 518 508 391
12 323.8 914 619 610 467
14 355.6 1067 711 711 533
16 406.4 1219 813 813 610
18 457 1372 914 914 686
20 508 1524 1016 1016 762
22 559 1676 1118 1118 838
24 610 1829 1219 1219 914

ASME B16.9 Long And Short Radius Elbow Dimensions


NPS O.D.
D		 45 deg
LR Elbow
Center-to-End
A		 45 deg SR Elbow
3D
Center-to-End
A
1/2 21.3 38 -
3/4 26.7 38 57
1 33.4 38 76
1¼ 42.2 48 95
1½ 48.3 57 114
2 60.3 76 152
2½ 73 95 190
3 88.9 114 229
3½ 101.6 133 267
4 114.3 152 305
5 141.3 190 381
6 168.3 229 457
8 219.1 305 610
10 273 381 762
12 323.8 457 914
14 355.6 533 1067
16 406.4 610 1219
18 457 686 1372
20 508 762 1524
22 559 838 1676
24 610 914 1829
26 660 991 1981
28 711 1067 2134
30 762 1143 2286
32 813 1219 2438
34 864 1295 2591
36 914 1372 2743
38 965 1448 2896
40 1016 1524 3048
42 1067 1600 3200
44 1118 1676 3353
46 1168 1753 3505
48 1219 1829 3658

Tolerances Of 3D Short Radius Elbow


ASME B16.9 Elbow Tolerances
For all fittings Elbow 90 Deg / Elbow 45 Deg 180 Deg Returns Elbow
Nominal Size (NPS) Outside Ø
at Bevel		 Inside Ø
at End		 Wall Thickness
t / t1		 Center to End Dim. A-B-C-M Center to Center Dim.
O		 Back to Face Dim.
K		 Align- ment of Ends
U
1/2 a 2 1/2 1 0,8 Not 2 7 7 1
3 a 3 1/2 1 1,6 less 2 7 7 1
4 +2 -1 1,6 than 2 7 7 1
5 a 6 +3 -1 1,6 87,50% 2 7 7 1
8 2 1,6 of nominal 2 7 7 1
10 +4 -3 3,2 tickness 2 7 7 2
12 a 18 +4 -3 3,2 3 10 7 2
20 a 24 +6 -5 4,8 3 10 7 2
26 a 30 +7 -5 4,8 3 ….. ….. …..
32 a 48 +7 -5 4,8 5 ….. ….. …..
